UV Sensor / Amplifier
>>
UV Sensors (Analog, Digital)
[1]
>>
3

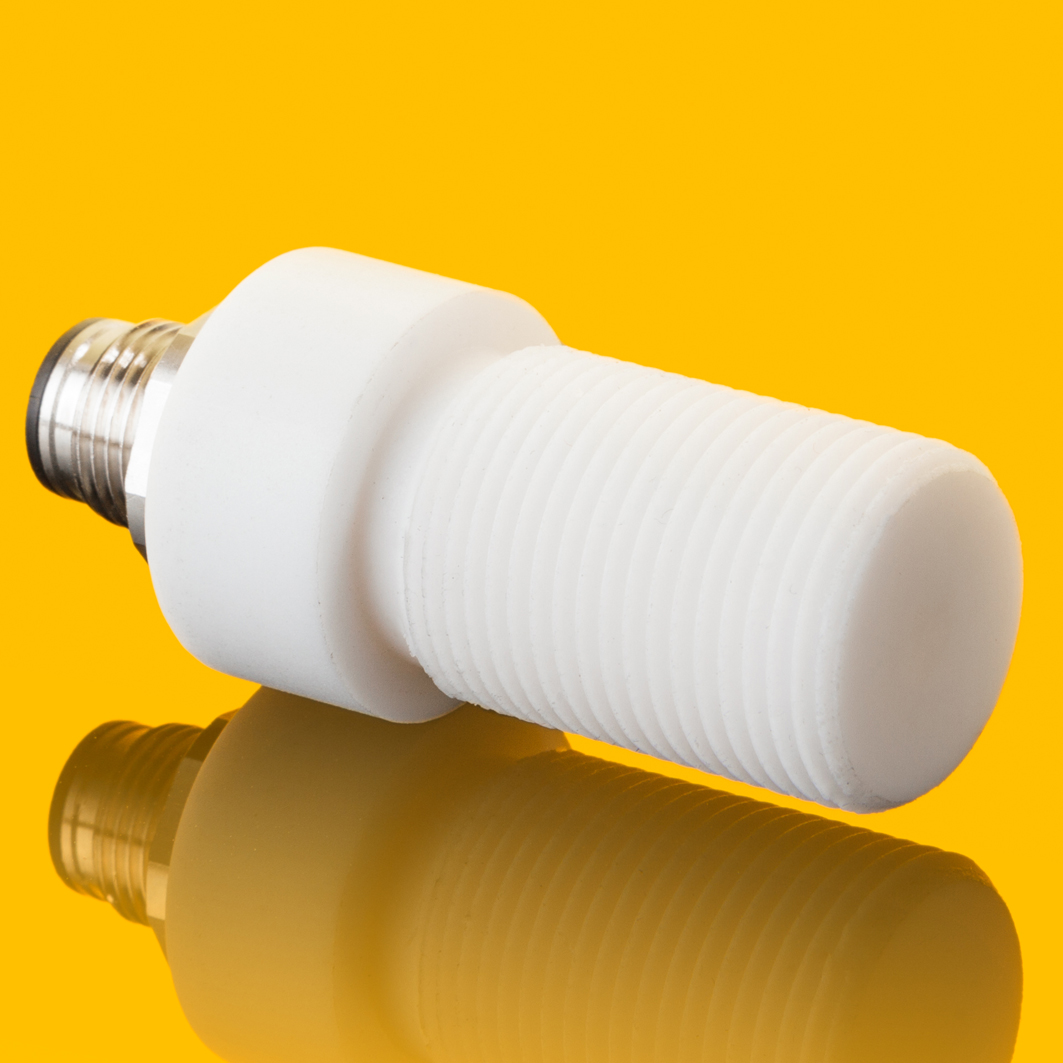

UV-Cosine-D
| Specifications | |
| Fixed Specifications | |
| Parameter | |
| Dimensions | please refer to the drawing |
| Signal Output | CAN bus signal, 125kbit/s |
| Pins 1, 7=CAN low, Pins 3, 8= CAN high | |
| Pins 2, 4, 5=GND | |
| Connection | 2m cable with 8-Pin male connector |
| (to converter or else) and 5 pin female | |
| connector (to the sensor) | |
| Temp. Coefficient | <-0,1%/K |
| Operating Temp. | -20…+80°C |
| Humidity | <80%, non condensing |
| (water submersible on request) |
Datasheet
