Power supply standard: DC: 10-80 V ± 10%; on request: AC: 24, 48, 60, 110, 120, 230, 240 V, 400 V ± 10%, 50/60 Hz; DC: 6-30, 110, 220 V ± 10%

Current consumption AC: max. 8 mA; DC: max. 9 mA

Storage temperature AC: -40°C ÷ +80°C; DC: -20°C ÷ +70°C

Operating temperature AC: -25°C ÷ +80°C; DC: -20°C ÷ +70°C

Protection class IP 67 front, IP 00 terminals

Display AC: 5 integers, 2 decimals; DC: 6 integers, 1 decimal; AC indicator; digit height: 4 mm

Displayed values range AC: 99999,99 h; DC: 999999,9 h

Mounting panel

Reset without reset

Accuracy AC: 1/100 h (36 s); DC: 1/10 h (6 min)

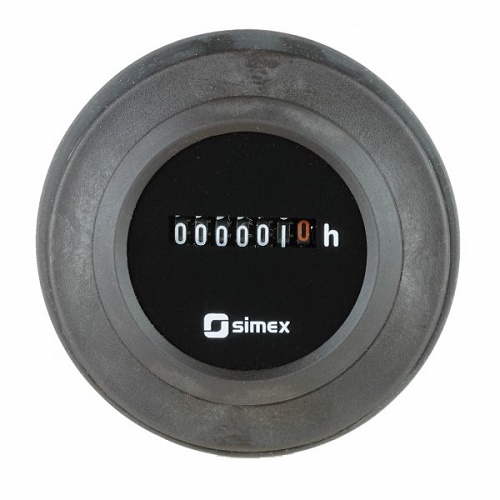

Case dimensions Ø 58 mm, depth 56 mm (SLC-47-A); Ø 80 mm, depth 61 mm (SLC-47-C)

Panel cut-out dimensions Ø 51 mm (SLC-47-A); Ø 72 mm (SLC-47-C)
