Sensor วัดระยะ
>>
Ultrasonic Distance Sensor
[1]
>>
1

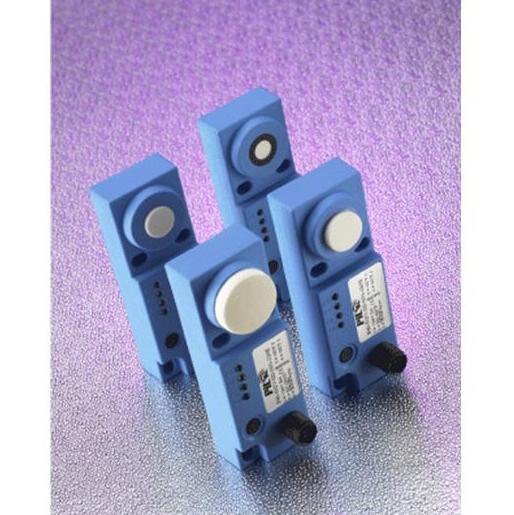

Sensor วัดระยะ Series P41
Ultrasonic Distance Sensors 30 - 400, …. 300 - 3500 mm
Analog Output 0 – 10V, 4 – 20mA or Switching Output PNP/NPN
Connector M12
| AnalogueSensor | Product | Detection Range (mm) |
| Voltage Output 0 – 10 V | ||
| Connector M12 |
P41-D4V-2D-1C0-130E |
300 - 3500 |
|
P41-D4V-2D-1C0-180E |
200 - 2000 | |
|
P41-D4V-2D-1C0-220E |
80 - 1600 | |
|
P41-D4V-2D-1C0-300E |
100 - 800 | |
|
P41-D4V-2D-1C0-330E |
60 - 500 | |
|
P41-D4V-2D-1C0-360E |
30 - 400 | |
| Current Output 4 – 20 mA | ||
| Connector M12 |
P41-D4V-2D-1D0-130E |
300 - 3500 |
|
P41-D4V-2D-1D0-180E |
200 - 2000 | |
|
P41-D4V-2D-1D0-220E |
80 - 1600 | |
|
P41-D4V-2D-1D0-300E |
100 - 800 | |
|
P41-D4V-2D-1D0-330E |
60 - 500 | |
|
P41-D4V-2D-1D0-360E |
30 - 400 | |
| Switching Sensors PNP | ||
| Connector Versions | ||
| Connecter M12 |
P41-D4V-2D-001-180E |
200 - 2000 |
|
P41-D4V-2D-001-220E |
80 - 1600 | |
|
P41-D4V-2D-001-300E |
100 - 800 | |
|
P41-D4V-2D-001-330E |
60 - 500 | |
|
P41-D4V-2D-001-360E |
30 - 400 | |
|
P41-D4V-2D-002-130E |
300 - 3500 | |
|
P41-D4V-2D-002-180E |
200 - 2000 | |
|
P41-D4V-2D-002-220E |
80 - 1600 | |
|
P41-D4V-2D-002-300E |
100 - 800 | |
|
P41-D4V-2D-002-330E |
60 - 500 | |
|
P41-D4V-2D-002-360E |
30 - 400 | |
