Data logger ในงานขนส่ง บันทึกการกระแทก/การวาง - Transportation data logger for shocks รุ่น MSR175

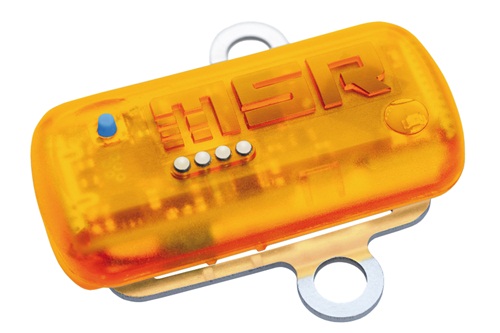

Transportation data logger for shocks รุ่น MSR175
Technical data of the sensors
| Measured parameters | Working range | Accuracy | Measurement/Storage rate |
|---|---|---|---|
| 3-axis acceleration | ±15 g and ±100 g |
15 g sensor: ±0.15 g (+25 °C) 100 g sensor: up to 15 g ±2 g, up to 100 g ±5 g (at +25 °C) |
up to 6400/s (±15 %) |
| Temperature | -20…+65 °C | ±0.5 °C (-10…+65 °C) | every 10 min. |
| Relative humidity | 0…100% rel. humidity |
±2% rel. humidity (10…85%, 0…+40 °C) ±4% rel. humidity (85…95%, 0…+40 °C) |
every 10 min. |
| Air pressure absolute | 0…2000 mbar absolute |
±2.5 mbar (750…1100 mbar absolute, +25 °C |
every 10 min. |
| Light | 0…65 000 lx | max. sensitivity at 500 nm | every 10 min. |
General technical data
| Housing: | Design housing PC, encapsulated, IP67 |
| Size & Weight: | 47 x 16 x 54 mm (W x H x L), approx. 28 g |
|
Memory capacity: |
Over 2 000 000 measurement values |
| Medium: | Air, various liquids |
| Colour: | Amber |
| Key: | Start measurement/retrieve status |
| Power supply: |
LiPo-battery 230 mAh, charged via the USB connection, recording period up to 8 weeks |
| Options: | Charging station (USB hub) for 7 MSR175 (item number B47002) |
| Interface: | USB |
| PC software package: |
MSR175 Dashboard, MSR ReportGenerator, MSR ShockViewer (basic version) System requirements: Windows XP/Vista/7/8/10, USB port |
| Operating conditions: | |
| Temperature: | -20…+65 °C |
| Storage conditions: | |
|
Temperature: Humidity: |
+5…+45 °C (ideal storage condition for the battery) 10…95 % relative humidity, non-condensing |
| Standards: | The MSR175 complies with EU-Directives RoHS/WEEE. |
Datasheet
