Premosys
>>
LED Analyzers
[2]
>>
4

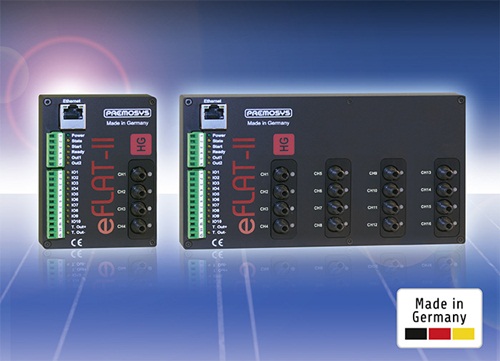

LED Analyzer and Test System รุ่น eFLAT-HG-II
รายละเอียดสินค้า :
- 4, 8, 12 and 16 optical channels for parallel measurement
- Sensitivity 0,7 to 600.000 Lux
- Measuring times from 81 ms to 1054 ms (adjustable combinations of sensitivity and intrgration time)
- Measured values output in x, y, Y, color temperature and dominant wavelength
- Spectral resolution to 1 nm
- Wavelengths 400 - 700 nm
- Optical results display for each measuring channel
- Up to 255 user calibrations per measuring channel
- Lux calibration by user possible
- Fast Ethernet and digital interface on Board
- Supply voltage 12 to 27 V DC, max. 0,3 A (at 12 V)
- Multi-language software tool
- Optional WIN 32 Low Level DLL
Datasheet
