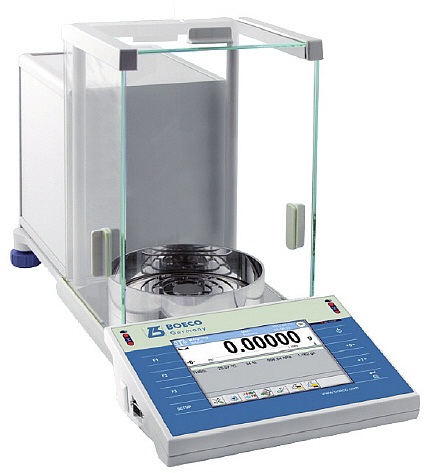

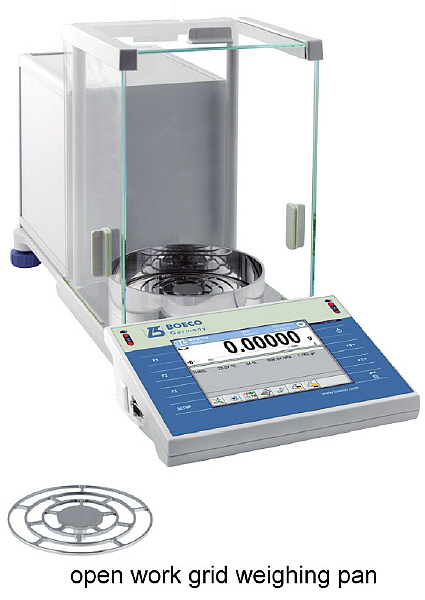

BOECO รุ่น BYY ค่าน้ำหนักสูงสุด : 220 g / ความละเอียด : ± 0.00006 g
| Specifiaction | BYY 21 | BYY 22 |
|---|---|---|
| Max. capacity | 110 g | 82 / 220 g |
| Minimal load | 0.001g | 0.001 g |
| Readability | 0.00001 g | 0.00001 g |
| 0.0001 g | ||
| Tare range | - 110 g | - 220 g |
| Repeatability | 0.000012 g | 0.000012 g |
| Linearity | ± 0.00006 g | ± 0.00006 g |
| ± 0.0002 g | ||
| Pan size | ø 85 mm | ø 85 mm |
| Stabilization time | 4 sec. | 4 sec. |
| Calibration | Internal (automatic) | Internal (automatic) |
| Interface | 2 x RS 232 / 2 x USB / Ethernet / 4 digital In/Outputs / WIFI | 2 x RS 232 / 2 x USB / Ethernet / 4 digital In/Outputs / WIFI |
| Display | 5,7’’ colour touch screen | 5,7’’ colour touch screen |
| Working temperature | +10°C - +40°C | +10°C - +40°C |
| Power Supply | 110-230 V AC, 50/60 Hz | 110-230 V AC, 50/60 Hz |
| Netweight / Grossweight | 12.7 kgs / 16.4 Kg | 12.7 kgs / 16.4 Kg |
| Size / Packing size | 573x206x302 / 715x385x485 mm | 573x206x302 / 715x385x485 mm |
| Model | Readability | Capacity |
|---|---|---|
| BYY 21 | 0,00001 g | 110 g |
| BYY 22 | 0,00001 g | 82 g |
| BYY 22 (dual range) | 0,0001 g |
220 g |
