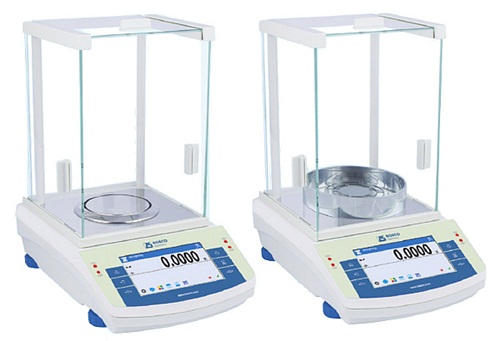

BOECO รุ่น BXX ค่าน้ำหนักสูงสุด : 310 g / ค่าความละเอียด ± 0.0003 g
| Specifiaction | BXX 22 | BXX 30 | BXX 31 |
|---|---|---|---|
| Max. capacity | 82 /220 g | 310 g | 220 g |
| Minimal load | 0.001 g | 0.01g | 0.01 g |
| Readability | 0.00001/0,0001 g | 0.0001 g | 0.0001 g |
| Tare range | - 220 g | - 310 g | - 220 g |
| Repeatability | 0,000015/0,0001 g | 0,0001 g | 0,0001 g |
| Linearity | ± 0.00006/0,0002 g | ± 0.0003 g | ± 0.0002 g |
| Pan size | ø 70 / 85 mm | ø 85 mm | ø 85 mm |
| Stabilization time | 6 / 3.5 sec. | 3.5 sec. | 3.5 sec. |
| Calibration | Internal (automatic) | Internal (automatic) | Internal (automatic) |
| Interface | 2xRS232, 2xUSB(A+B), WIFI (optional) | 2xRS232, 2xUSB(A+B), WIFI (optional) | 2xRS232, 2xUSB(A+B), WIFI (optional) |
| Display | 5“ colour capacitive touchscreen | 5“ colour capacitive touchscreen | 5“ colour capacitive touchscreen |
| Working temperature | +10°C - +40°C | +10°C - +40°C | +10°C - +40°C |
| Power Supply | 110-230 V AC, 50/60 Hz | 110-230 V AC, 50/60 Hz | 110-230 V AC, 50/60 Hz |
| Netweight / Grossweight | 5.4 kgs / 9 kg | 5.4 kgs / 9 kg | 5.4 kgs / 9 kg |
| Size / Packing size | 333x206x355 / 495x400x515 mm | 333x206x355 / 550x460x580 mm | 333x206x355 / 495x400x515 mm |
| Model | Readability | Capacity |
|---|---|---|
| BXX 22 | 0.00001 g | 82 g |
| (dual range) | 0.0001 g | 220 g |
| BXX 30 | 0.0001 g | 310 g |
| BXX 31 | 0.0001 g |
220 g |
