UV Sensor / Amplifier
>>
Amplifier
[2]
>>
8

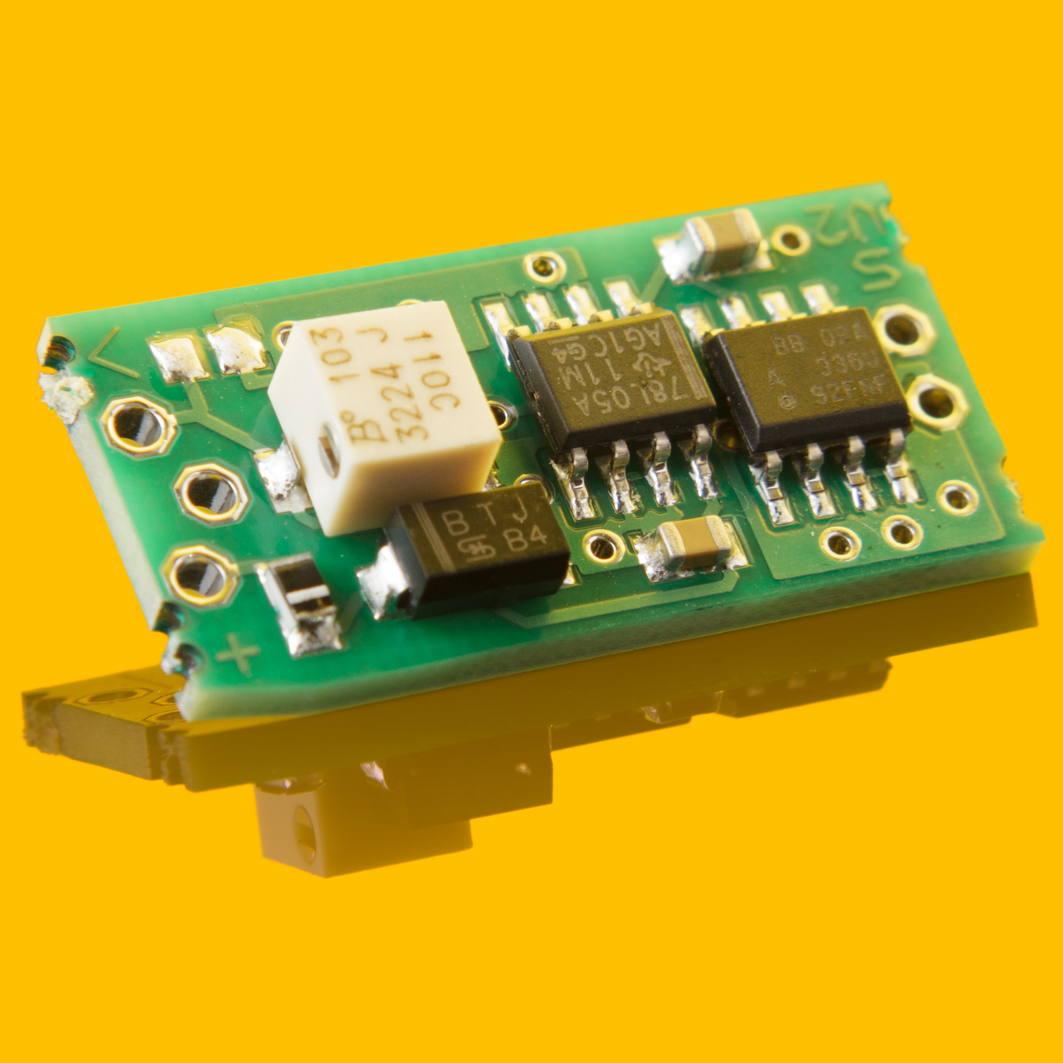

VOLTCON_HI
Specifications
| Input solder points |
Photodiode Anode = positive terminal of the photodiode Photodiode Cathode = negative terminal of the photodiode |
| Power supply = Output terminal solder points | A voltage of 5...24V is to be applied between V+ and GND. The resulting output voltage between 0 and 5V is measured between the signal output and GND. The voltage is proportional to the applied photocurrent. |
| Dimensions | W x L x H = 13 x 26 x 8mm |
| Operating temperature | -20...80°C |
| Storage temperature | -40...80°C |
Datasheet
