Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC



Power consumption for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA; 19V ÷ 50V DC power supply: max. 4,5 W



Display LED, red, 4 x 57 mm, with 8-step adjustment of brighness



Inputs pulse, galvanically isolated: 1 x start and 1 x stop counting, 1 x reset



Input levels low: 0 V ÷ 3 V; high: 10 V ÷ 30 V



Displayed values range from 0 to 100 hours in hh.mm (hours.minutes) format



Communication interface RS-485, 8N1, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated)



Resolution 1 minute



Output power supply output: 24V DC +5%, -10% / max. 100 mA



Storage temperature -10°C ÷ +70°C



Operating temperature 0°C ÷ +50°C



Reset manual or electronic



Accuracy ± 0,005 % of displayed value



Case material ABS + glass fibre

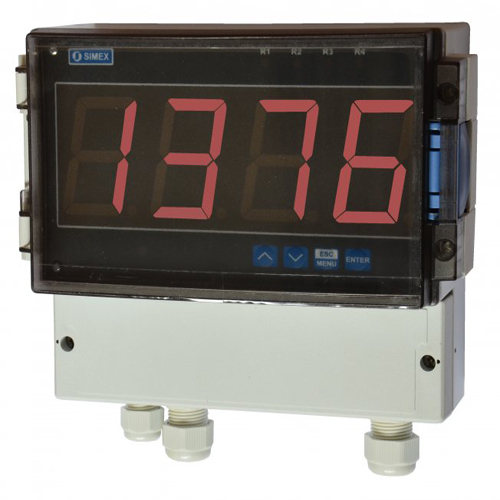

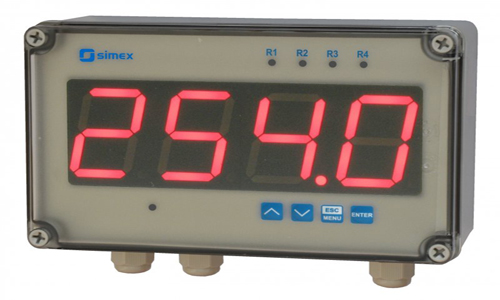

Case dimensions IP 65 type case: 215 x 185 x 118,2 mm; IP 67 type case: 230 x 140 x 96,5 mm



Case wall-mounted (depends on IP version)



Protection class IP 65 (standard) IP 67 (option)



Inputs sampling frequency > 10 kHz
