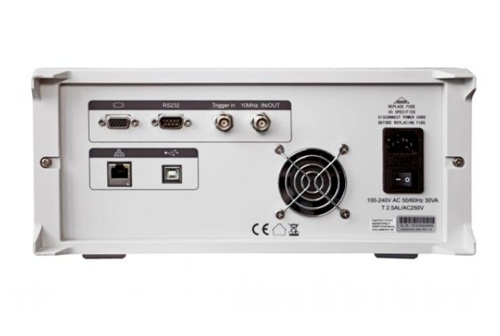

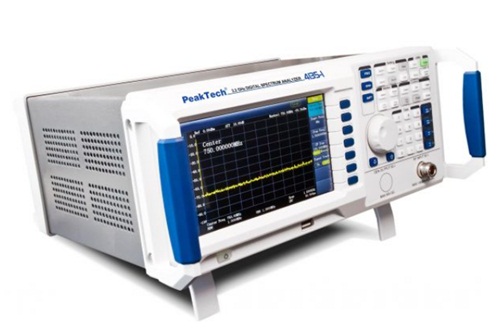

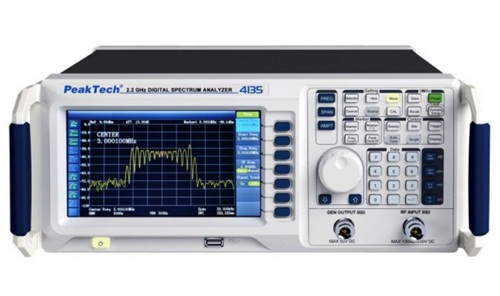

Digital Spectrum Analyzer 9 kHz - 1.5 GHz รุ่น PeakTech 4135-1
.jpg)
.jpg)
| Frequency range | 9 kHz ~ 2,2 GHz |
| Resolution | 1 Hz (over full Bandwidth) |
| Resolution Bandwidth | 10 Hz ~ 3 MHz (in 1-3-10 sequence) 200 Hz, 9 kHz, 120 kHz |
| Span Range | 0 Hz, 100 Hz ~ 2,2 GHz |
| Phase noise | -82 dBc/Hz (offset 10 kHz) |
| Disp. Average Noise Level | 1 MHz ~ 3 GHz < -120 dBM + 3x (f/1 GHz) dB (Pre. Amp. OFF), 1 MHz ~ 3 GHz < -135 dBM + 3x (f/1 GHz) dB (Pre. Amp. ON) |
| Amp. Measurement | DANL up to +30 dBm |
| Level Display | dBm, dBmV, DBµV, V, W |
| Trigger Source | Free, Video, External |
| Triggerlevel (Ext.) | 5 V TTL |
| GENERAL : | |
|---|---|
| Interface | USB-Host, USB Device, LAN, RS232, VGA |
| Operation Voltage | 100 ~ 240 V AC; 50/60 Hz |
| Dimensions (WxHxD) | 365 x 155 x 300 mm |
| Weight | approx. 6 kg |
| EAN-13 | 4250569404030 |
Datasheet
