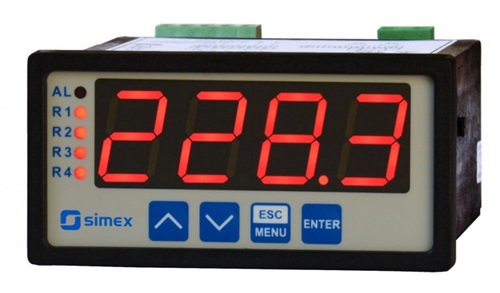

PUR-94 - PID controllers
| Inputs | universal (programmable): current; voltage; milivoltage; thermoresistance or thermocouple type K, S, J, T, N, R, B, E |
|---|---|
| Outputs | 1, 2 or 4 relays Imax=1A, Umax=30VDC/250VAC (cos fi=1)) and 0 or 1 x OC 30mA/30VDC/100mW; transducer power supply output: 24V DC +5%, -10% / max. 100 mA, stabilized, not insulated from measuring inputs |
| Power consumption | for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 6,5 VA; 19V ÷ 50V DC power supply: max. 6,5 W |
| Power supply | 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC |
| Display | LED, red (green on request), 4 x 20 mm high, brightness adjustable in 8 steps |
| Measurement range | current: 0-20 mA or 4-20 mA, voltage 0-5 V, 1-5V, 0-10V or 2-10V, milivoltage 0-60 mV, 0-75 mV, 0-100 mV or 0-150 mV; thermoresistance: Pt100, Pt500, Pt1000, measuring range -100°C ÷ 600°C; thermocouple K: -200°C ÷ +1370°C; S: -50°C ÷ +1768°C; J: -210°C ÷ +1200°C; T: -200°C ÷ +400°C; N: -200°C ÷ +1300°C; R: -50°C ÷ +1768°C; B: +250°C ÷ +1820°C; E: -200°C ÷ +1000°C |
| Accuracy | 0.1% @25°C (inputs: current, voltage, milivoltage, thermoresistance, thermo-couple K, J, E); 0.2% @ 25°C (thermocouple N), 0.5% @25°C (thermocouple S, T, R, B) |
| Analogue outputs | (available with 2 x REL or OC, see ordering): active current: operating range 0/4-20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit passive current: isolated, operating range 4-20 mA (max. 2,8-24 mA), load resistance 600 Ω@24VDC, resolution 13 bit; active voltage: operating range 0/1-5V, 0/2-10V (max. 0-11V), load resistance min. 2000 Ω, resolution 13 bit |
| Communication interface | RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated from measuring inputs) |
| Stability | typ. 50 ppm/°C |
| Displayed values range | -999 ÷ 9999 + decimal point |
| Operating temperature | 0°C ÷ +50°C (standard); -20°C ÷ +50°C (option) |
| Storage temperature | -10°C ÷ +70°C; -20°C do +70°C (depending on version) |
| Case dimensions | 96 x 48 x 100 mm |
| Case material | NORYL-GFN2S E1 |
| Case | panel mounting |
| Panel cut-out dimensions | 90,5 x 43 mm |
| Protection class | IP 65 (front), available additional frame IP 65 for panel cut-out sealing; IP 20 (case and connection clips) |
| Installation depth | min. 102 mm |
