Premosys
>>
LED Analyzers
[2]
>>
5

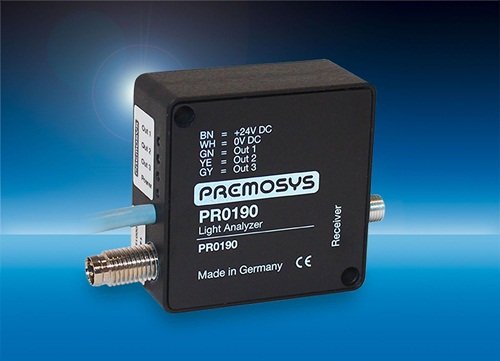

LED Analyzer and Test System รุ่น PR0190
รายละเอียดสินค้า :
- 1-channel system
- Sensitivity 3.5 to 10,000,000 Lux
- Measuring times approx. 25 ms per cycle
- Output of measurement values in x, y, Y, color temperature and dominant wavelength
- Resolution xy<0.001, Ldom 1 nm, CCT 1 K
- Detectable wavelength range 400 - 700 nm
- 8 automatic gain levels, resolution 12 bits
- 3 different products and parameter sets can be stored on the system
- System for relative and absolute measurement available
- User calibration by user possible
- Lux calibration by user possible
- Serial and digital interface onboard
- Supply voltage 12 to 27 V DC, max. 0.3 A (at 12 V)
- Multi-language software tool
- Optional WIN 32 Low Level DLL
Datasheet
