Technical Data

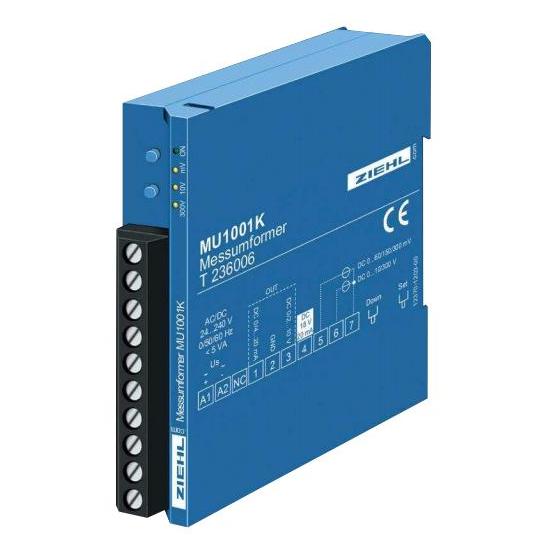

Universal Measuring-transducer for DC-voltages
Potential separation between inputs and outputs

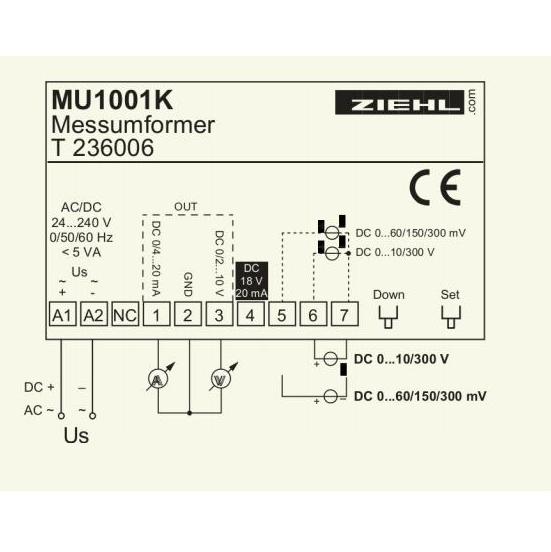

Voltage-inputs:
DC 0-10 V
DC 0-300 mV for current measuring with shunt (60/150/300 mV pre-set)
DC 0-300 V can be compensated by the user (20/50/100/200/300 V pre-set)
Zeros and Fullscales freely selectable

Output signals DC 0/ -20 mA, 0-10 V
1 device for all applications

Universal supply voltage AC/DC 24-240 V
