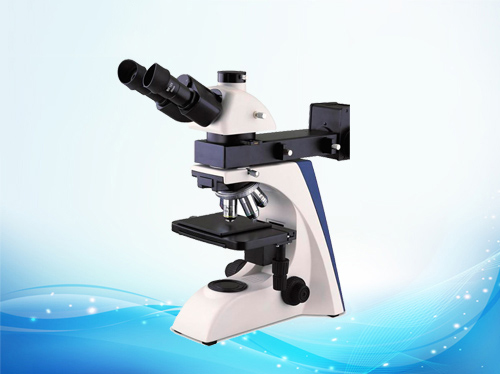

Metallurgical Microscope รุ่น MIT3&500
MIT Series Metallurgical Microscope Outfits
| Items | Specifications | MIT300 | MIT500 | |
| Eyepieces | WF10X -18mm | YY | YY | |
| WF10X -18 mm (Reticule 0.1mm) | Y | Y | ||
| WF5X | oo | oo | ||
| WF12.5X | oo | oo | ||
|
Infinity Plan Objective (no cover glass) |
5X/0.1 | W.D=6.73mm | Y | Y |
| 10X/0.25 | W.D=4.19mm | Y | Y | |
| 20X/0.4(S) | W.D=2.14mm | Y | Y | |
| 40X/0.65 (S) | W.D=0.45mm | o | o | |
| 100X/1.25 (Oil) (S) | W.D=0.12mm | o | Y | |
|
Long Working Distance Infinity Plan Objective (no cover glass) |
20X/0.4 (S) | W.D=8.35mm | o | o |
| 40X/0.65 (S) | W.D=3.90mm | Y | Y | |
| 50X/0.7 (S) | W.D=1.95mm | o | o | |
| 80X/0.80 (S) | W.D=0.85mm | o | o | |
| Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm |
Y | Y | |
| Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm Light Distribution: 0:100 |
o | o | |
| Nosepiece | Quintuple | Y | Y | |
|
Mechanical Stage For Reflection Illumination |
Stage Size: 190X140mm,Travel: 78mmX55mm Stage Fast Lowing Unit: Stage Up-Down moving range can be 50mm (Max.) |
Y | ||
|
Mechanical Stage For Transmission Illumination |
Stage Size: 190X140mm,Travel: 78mmX55mm Coaxial Coarse and Fine Focusing Knobs |
Y | ||
| Stage Plate | Place The Sample on The Plate | Y | Y | |
| Clip | Y | |||
| Glass Plate | o | |||
| Stage Micrometer | 0.01mm | o | o | |
| Polarizing Unit | Polarizing /Analyzer Slide | Y | Y | |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | Y | ||
| Illumination | 12V/50W Halogen Lamp (Reflection Illumination) | Y | Y | |
| 6V/20W Halogen Lamp (Transmission Illumination) | o | Y | ||
| 6V/30W Halogen Lamp(Transmission Illumination) | o | o | ||
| Field Diaphragm | Y | |||
| Filter | Blue | o | Y | |
| Green | o | o | ||
| Yellow | o | o | ||
