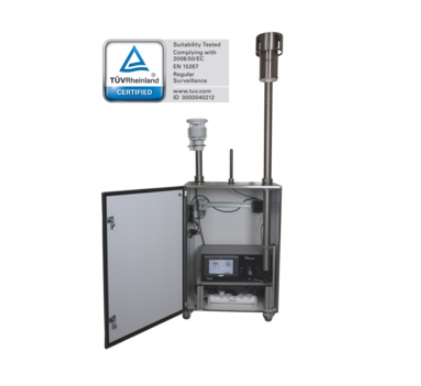

CERTIFIED FINE DUST MONITORS รุ่น Fidas® 200 S
| Interfaces | USB, Ethernet, RS232/485, Wi-Fi |
|---|---|
| Measurement range (size) | 0.18 - 100 µm (3 measuring ranges) |
| Size channels | 64 (32/decade) |
| Measuring principle | Optical light-scattering |
| Measurement range (number CN) | 0 - 20000 particles/cm^3 |
| Time resolution | 1 s - 24 h, 15 min in type approved operation |
| Volume flow | 4.8 l/min ≙ 0.3 m^3 /h |
| Data acquisition | Digital, 20 MHz processor, 256 raw data channels |
| Power consumption | Approx. 200 W |
| User interface | Touchscreen, 800 • 480 Pixel, 7" |
| Power supply | 115 - 230 V, 50 - 60 Hz |
| Housing | Weatherproof outdoor housing (IP 65) |
| Dimensions | 1810 • 600 • 400 mm (H • W • D) |
| Weight | Approx. 60 kg |
| Operating system | Windows embedded |
| Data logger storage | 4 GB |
| Software | PDAnalyze Fidas^® |
| Aerosol conditioning | Thermal with IADS |
| Measurement range (mass) | 0 - 10000 µg/m^3 |
| Reported data | PM_1, PM_2.5, PM_4, PM_10, TSP, C_N, particle size distribution, pressure, temperature, humidity |
| Installation conditions | -20 – +50 °C, weatherproof (EN-certified) |
| Sampling head | Sigma-2 |
