Certified fine dust monitors
[4]
>>
1

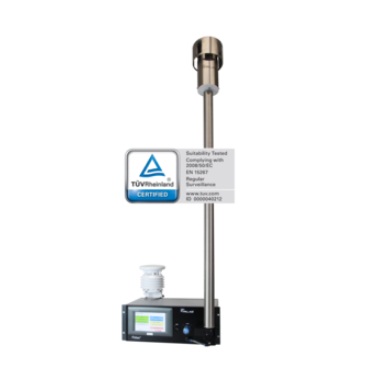

CERTIFIED FINE DUST MONITORS รุ่น Fidas® 200
| Interfaces | USB, Ethernet, RS232/485, Wi-Fi |
|---|---|
| Measurement range (size) | 0.18 - 100 µm (3 measuring ranges) |
| Size channels | 64 (32/decade) |
| Measuring principle | Optical light-scattering |
| Measurement range (number CN) | 0 - 20000 particles/cm^3 |
| Time resolution | 1 s - 24 h, 15 min in type approved operation |
| Volume flow | 4.8 l/min ≙ 0.3 m^3 /h |
| Data acquisition | Digital, 20 MHz processor, 256 raw data channels |
| Power consumption | Approx. 200 W |
| User interface | Touchscreen, 800 • 480 Pixel, 7" |
| Power supply | 115 - 230 V, 50 - 60 Hz |
| Housing | Table housing, optionally with mounting brackets for rack-mounting |
| Dimensions | 450 • 320 • 180.5 mm (H • W • D), 19" |
| Weight | 9.3 kg (control unit only) |
| Operating system | Windows embedded |
| Data logger storage | 4 GB |
| Software | PDAnalyze Fidas^® |
| Aerosol conditioning | Thermal with IADS |
| Measurement range (mass) | 0 - 10000 µg/m^3 |
| Reported data | PM_1, PM_2.5, PM_4, PM_10, TSP, C_N, particle size distribution, pressure, temperature, humidity |
| Installation conditions | +5 – +40 °C |
| Sampling head | Sigma-2 |
