Features:

• Measure clockwise and counter-clockwise static torque
• Female square drive 3/8"
• Supplied with chuck (and chuck key)
• 5 capacities available: 0.12Nm, 0.3Nm, 1.5Nm, 6Nm, 12Nm
• Delivered with calibration certificate

Principle of operation:

• Torque sensor should be in line with the axis of rotation
• Apply torque with a slow, smooth, and uniformed turn at the torque sensor handle (in clockwise ou counter-clockwise).
• In real time the raw data of the applied torque shown on the display
• Either transfer on demand the memorized data to a computer using the RSIC software or connect your device to your computer with CALIGRAPH software for a continuous data acquisition

Supplied with:

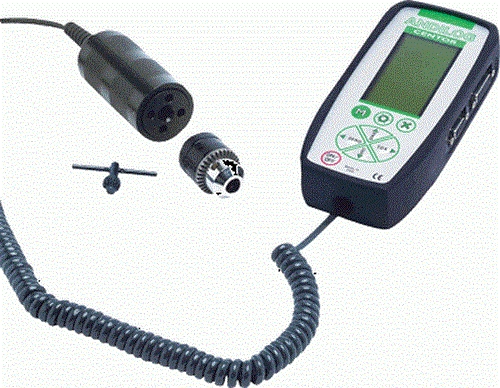

• Centor Easy gauge
• Chuck and check key
• Carrying Case
• AC adapter/charger
• Certificate of Calibration
