Main features:

• Live graphing: Torque vs Time, Torque vs Rotational displacement
• USB, RS232 outputs
• Compatible with the optional Bluetooth dongle or USB stick recorder DATASTICK
• Torque capacity available from 6 to 250Nm
• For shaft rotating up to 5,000rpm

Available measurements:

• Torque: raw data, maximum, minium, average, First Peak, Torque value at Rotary displacement value...
• Rotary displacement (angle, nb of revolution)
• Speed (rev/min, rev/sec)

Supplied with :

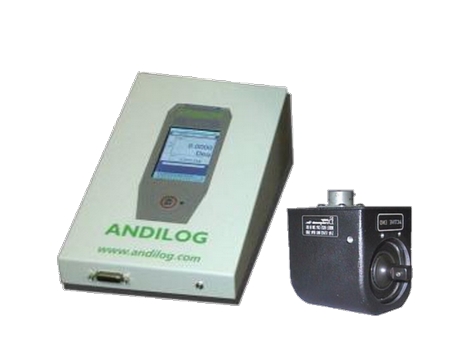

• Centor Touch Dual on Table top version - CNR DTT
• Rotary drive torque sensor with internal encoder (foot mount as an option)
• Calibration certificate

Working principle:

• The rotary drive torque sensor includes an internal encoder, to measure the rotational displacement, and it's linked to the graphical Torque Gauge CENTOR TOUCH DUAL, which is able to collect measurements from two channels.
• The rotary torque sensor is mounted in line on the rotating shaft.
• The gauge displays the curve, the torque and rpm values

Related Products

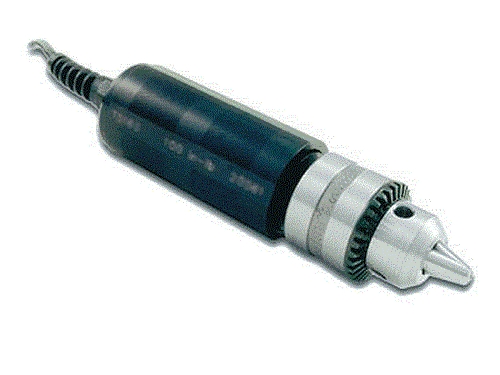

Handle torque sensor for Centor Star & Dual

Features:

• Measure clockwise and counter-clockwise static torque
• Female square drive 3/8"
• Supplied with chuck (and chuck key)
• 5 capacities available: 0.12Nm, 0.3Nm, 1.5Nm, 6Nm, 12Nm
• Delivered with calibration certificate

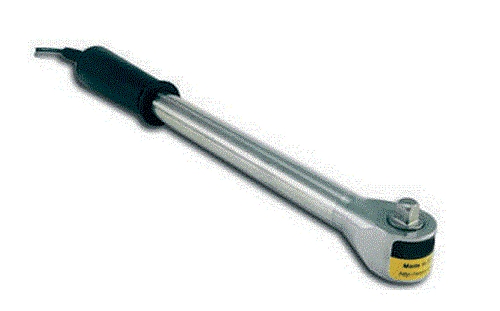

Torque wrench-SPIP connector for Centor Star & Dual

Features:

• Measure clockwise and counter-clockwise static torque
• tandard male square drive
• 3 capacities available:  15Nm, 60Nm, 150Nm
• Delivered with calibration certificate
