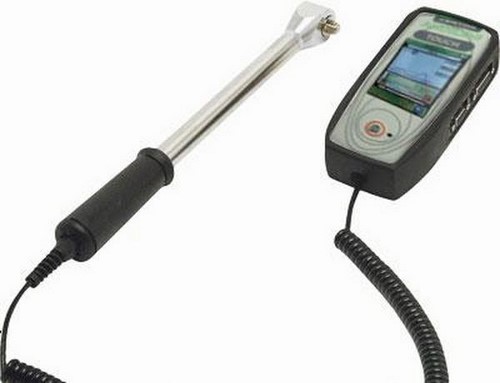

Handheld presentation and features:

• Based on our advanced gauge Centor Touch version Star
• Large colour Touch screen with live graphing in real time
• Adjustable set points (with color visual and beeping alarms)
• Pre-defined calculation: Peak, 1st Peak, torque at time, Average, statisticals and more

Torque sensor TW presentation:

• Equipped with a standard male square drive to adapt a large range of standard tooling
• Available with capacity to chose among: 15Nm, 60Nm and 150Nm

Operating principles:

• Torque wrench sensor should be in line with axis of rotation
• Apply torque with a slow, smooth, and uniformed turn at the torque wrench handle (clockwise or counter clockwise).
• In real time a live graphing of the applied torque shown on the display and all the measurements made can be store in the internal memory, which has a capacity of 2000 values.
• The memory can then be easily transferred to a USB stick with the optional DATASTICK, or transferred to a computer via USB interface and the CALIGRAPH software.

Supplied with:

• Centor Touch Star gauge
• Torque wrench sensor
• AC adapter/charger
• Certificate of Calibration
