Handheld presentation and features:

• Based on our advanced gauge Centor Touch version Star
• Large colour Touch screen with live graphing in real time (torque vs time)
• Adjustable set points (with color visual and beeping alarms)
• Pre-defined calculation: Peak, 1st Peak, torque at time, Average, statisticals and more

Torque sensor TM presentation:

• Equipped with a standard male square drive 1/4 to adapt a large range of standard tooling
• 2 models available: 0.4Nm and 0.7Nm

Operating principles:

• Torque sensor should be in line with axis of rotation
• Apply torque with a slow, smooth, and uniformed turn at the torque sensor (clockwise or counter clockwise).
• In real time a live graphing of the applied torque shown on the display and all the measurements made can be store in the internal memory, which has a capacity of 2000 values.
• The memory can then be easily transferred to a USB stick with the optional DATASTICK, or transferred to a computer via USB interface and the CALIGRAPH software.

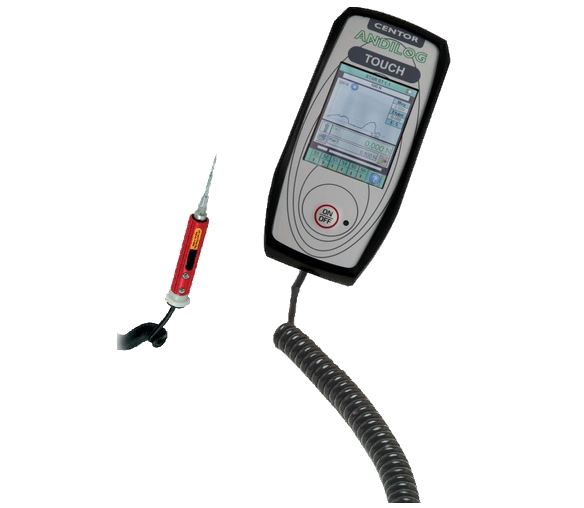

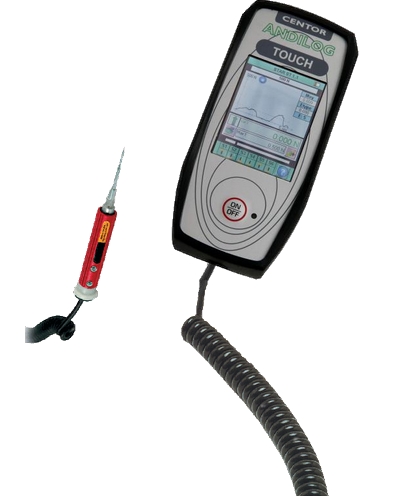

Supplied with:

• Centor Touch Star gauge
• Miniature screwdriver reaction torque sensor
• AC adapter/charger
• Carrying case
• Certificate of Calibration
