Handheld presentation and features:

• Based on our advanced gauge Centor Touch version Star
• Large colour Touch screen with live graphing in real time
• Adjustable set points (with color visual and beeping alarms)
• Pre-defined calculation: Peak, 1st Peak, Average, statisticals and more

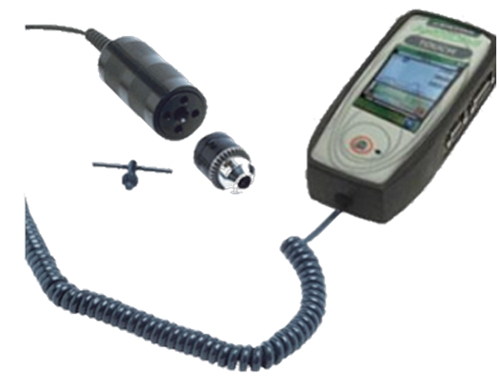

Torque sensor TH presentation:

• The static torque sensor TH can easily hold by hand with its outside diameter of less than 45mm
• Equipped with a 3/8" female square drive to adapt a large range of standard tooling
• Supplied with a manual chuck for a versatile range of applications (opening from 1.5 to 10mm)
• Available with capacity to chose among: 0.12Nm, 0.3Nm, 1.5Nm, 6Nm or 12Nm

Operating principles:

• Apply torque with a slow, smooth, and uniformed turn at the torque sensor handle.
• In real time a live graphing of the applied torque shown on the display and all the measurements made can be store in the internal memory, which has a capacity of 2000 values.
• The memory can then be easily transferred to a USB stick with the optional DATASTICK, or transferred to a computer via USB interface and the CALIGRAPH software.

Supplied with:

• Chuck
• Carrying Case
• AC adapter/charger
• Certificate of Calibration
