เครื่องชั่งอุตสาหกรรม/LAB
>>
เครื่องชั่งวิทยาศาสตร์/LAB
[1]
>>
7

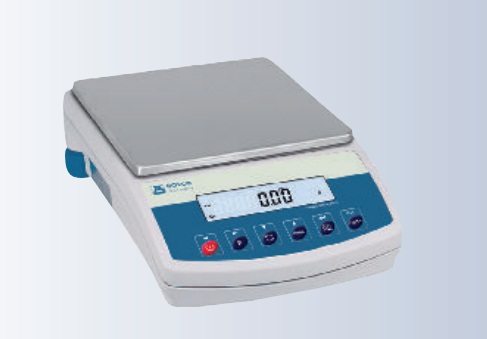

BOECO รุ่น BWL ค่าน้ำหนักสูงสุด : 10 kg / ค่าความละเอียด : ± 0.2 g
| Specifiaction | BWL 51 | BWL 61 | BWL 60 |
|---|---|---|---|
| Max. capacity | 2000 g | 6000 g | 10 kg |
| Readability | 0.01 g | 0.1 g | 0.1 g |
| Tare range | - 2000 g | - 6000 g | - 10 kg |
| Repeatability* | 0.03 g | 0.2 g | 0.2 g |
| Linearity | ± 0.03 g | ± 0.2 g | ± 0.2 g |
| Pan size | 195 x 195 mm | 195 x 195 mm | 195 x 195 mm |
| Stabilization time | 3 sec. | 3 sec. | 3 sec. |
| Calibration | external | external | external |
| Interface | RS 232 | RS 232 | RS 232 |
| Display | LCD with backlight | LCD with backlight | LCD with backlight |
| Working temperature | + 10°C - +40°C | + 10°C - +40°C | + 10°C - +40°C |
| IP rating | IP 43 | IP 43 | IP 43 |
| Power Supply | 110-230 V AC, 50/60 Hz | 110-230 V AC, 50/60 Hz | 110-230 V AC, 50/60 Hz |
| Operation time on batteries | 45 hours (average time) | 45 hours (average time) | 45 hours (average time) |
| Netweight / Grossweight | 3.6 / 4.6 kg | 3.6 / 4.6 kg | 3.6 / 4.6 kg |
| Size / Packing size | 335x210x88 / 470x380x336 mm | 335x210x88 / 470x380x336 mm | 335x210x88 / 470x380x336 mm |
| Code | Description |
|---|---|
| BOE F1-2000 | Calibration weight, 2 kg, F1 |
| BOE F1-5000 | Calibration weight, 5 kg, F1 |
| BOE F1-10000 | Calibration weight, 10 kg, F1 |
|
CALIBRATION WEIGHTS cylindrical shape. nickel-plated and polished brass, packed in a lined plastic container, with DAkkS certificate |
|
ต้องการข้อมูลเพิ่มเติมกรุณาติดต่อ
Datasheet
