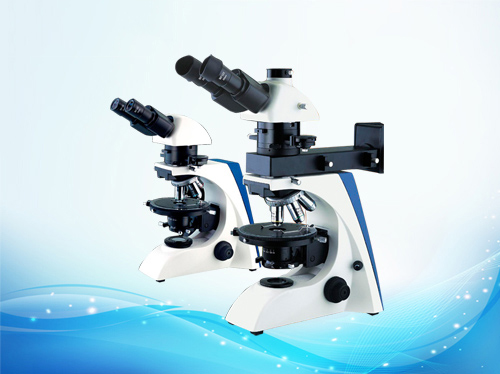

Polarizing Microscope รุ่น BK-POL
.jpg)
BK-POL/POLF/POLR Polarizing Microscope Outfits
| Items | Specification | BK-POL | BK-POLF | BK-POLR |
| Eyepiece | WF10×-18mm | Y | Y | |
| WF10×-18 mm (Reticule 0.1mm) | Y | Y | ||
| WF10×-20 mm | Y | |||
| WF10×-20 mm (Reticule 0.1mm) | Y | |||
|
Non-stress Infinity Plan Objective |
4×/0.10 | Y | Y | Y |
| 10×/0.25 | Y | Y | Y | |
| 20×/0.40(S) | Y | Y | Y | |
| 40×/0.65(S) (0.17mm cover glass) | Y | Y | ||
| 40×/0.65S) (no cover glass) | Y | o | ||
| 60×/0.80 (S) | o | o | Y | |
|
LWD Infinity Plan Objective (no cover glass) |
20×/0.40 (S) W.D=8.35mm | o | o | |
| 40×/0.65 (S) W.D=3.90mm | o | o | ||
| 50×/0.70 (S) W.D=1.95mm | o | o | ||
| 80×/0.80 (S) W.D=0.85mm | o | o | ||
| Seidentopf Binocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. |
Y | Y | Y |
| Seidentopf Trinocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. Light Distribution: 0:100 |
o | o | o |
| Professional dedicated polarizing binocular head | It can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned. | o | o | o |
| Professional dedicated polarizing trinocular head | o | o | o | |
| Nosepiece | Quintuple | Y | Y | Y |
| Analyzer Unit with Scale | Rotatable 360°(Module Type, Can Be Locked) | Y | Y | Y |
| Bertrand Lens | Built In, Center Adjustable | Y | Y | Y |
| Λ Slip | First Class Red | Y | Y | Y |
| 1/4λ Slip | Y | Y | Y | |
| Quartz Wedge | (Ⅰ-Ⅳ Class) | Y | Y | Y |
| Revolving Round Stage |
Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’ |
Y | Y | Y |
| Polarizing Attached Mechanical Stage | o | o | o | |
| Swing-out Condenser | N.A.0.9/0.13 swing out achromatic condenser | Y | Y | |
| Polarizing Unit with Scale | Rotatable 360°,Can Be Locked | Y | Y | |
| Koehler Illumination | 6V/20W Halogen Lamp(6V/30W is Optional) | Y | Y | |
| Filter | Blue, | Y | Y | Y |
| Amber | o | o | o | |
| Green | o | o | o | |
| Neutral | o | o | o | |
| Reflecting Polarizing Unit | Halogen Lamp House 12V/50W | Y | Y | |
| Power House | Y | Y | ||
| Polarizer Choosing Slide | Y | Y | ||
| C-mount | 1× | o | o | o |
| 0.57× （Focus adjustable） | o | o | o |
Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.
