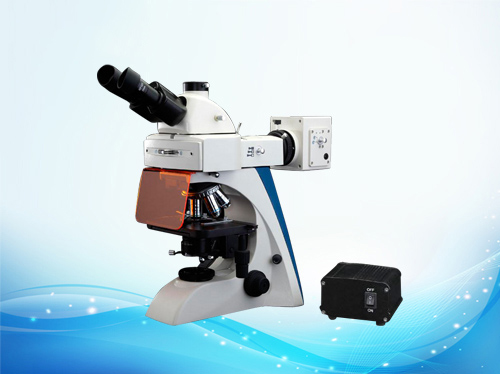

Fluorescence microscope - BK-FL2FL4

BK-FL2/FL4 Series Biological Microscope Outfits

Items Specification BK-FL2 BK-FL4
Eyepiece WF10×20mm YY YY
WF10×20mm(Reticule 0.1mm) o o
WF16× oo oo
Infinity Plan Achromatic Objectives PLAN 4×0.10 Y Y
PLAN 10×0.25 Y Y
PLAN 20×0.40(s) Y Y
PLAN 40×0.66(s) Y Y
PLAN 100×1.25(s,oil) Y Y
PLAN 2.5×0.07 o o
PLAN 60×0.80(s) o o
Observing tube Seidentopf Binocular Head o o
Seidentopf Trinocular Head  Y Y
Nosepiece Inward Inclined positional quintuple nosepiece Y Y
Stage Mechanical stage Y Y
Condenser Abbe N.A.1.25 Y Y
Swing out achromatic condenser,N.A.0.9/0.13 o o
Illumination device 6V/20W halogen
(wide range input voltage:100V~240V)
Y Y
6V/30W halogen
(wide range input voltage:100V~240V)
o o
3W-LED cold light illumination o o
Filter Blue(optional : yellow, green, gray) Y Y
C-mount 1×C-Mount (apply to digital camera) o o
0.57×C-Mount (apply to camera system) o o
Adaptor for digital camera Apply to CANONNIKONOLYMPUS etc. o o
Fluorescence Attachment Epi fluorescence unit(B、G、Uv、V)   Y
Epi fluorescence unit(B、G) Y
100W mercury lamp house Y Y
100Wmercury power source(optional: pointer or digital) Y Y
Centering objective Y Y
3W-LED Epi fluorescence unit(B、G) o

Note: “Y”In Table Is Standard Attachment. “o” Is Optional Accessories
