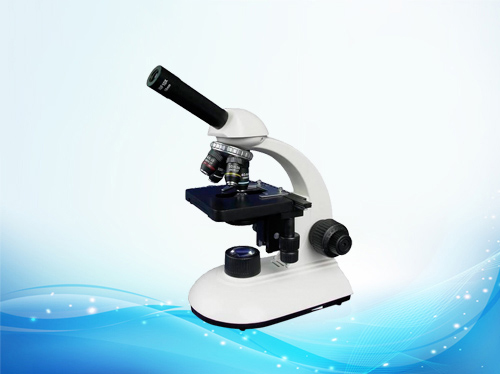

B Series Biological Microscope
B Series Biological Microscope Outfits
| Items | Specification | B104 LED | B203 LED | B204 LED | B203 LEDTR | B204 LEDTR |
| Eyepiece | WF 10×-18 mm | Y | YY | YY | YY | YY |
| WF 10×-18 mm(With Pointer) | o | o | o | o | o | |
| WF 16×-13 mm | o | o | o | o | o | |
| WF 10×-18 mm(Reticule 0.1 mm) | o | o | o | o | o | |
|
Achromatic Objective |
4× | Y | Y | Y | ||
| 10× | Y | Y | Y | |||
| 40×(S) | Y | Y | Y | |||
| 100×/1.25 (Oil) (S) | Y | Y | Y | |||
| 20× | o | o | o | |||
| 60× (S) | o | o | o | |||
| Plan Objective | 4× | Y | Y | |||
| 10× | Y | Y | ||||
| 40×/0.65 (S) | Y | Y | ||||
| 100×/1.25 (Oil) (S) | Y | Y | ||||
| 20× | o | o | ||||
| 60×(S) | o | o | ||||
| Monocular Head | Inclined 30°, Rotatable 360° | Y | ||||
| Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm |
Y | Y | |||
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80 |
Y | Y | |||
| Nosepiece | Quadplex | Y | Y | Y | Y | Y |
