DIS Sensor
>>
Sensor วัดความสั่นสะเทือน
[1]
>>
2

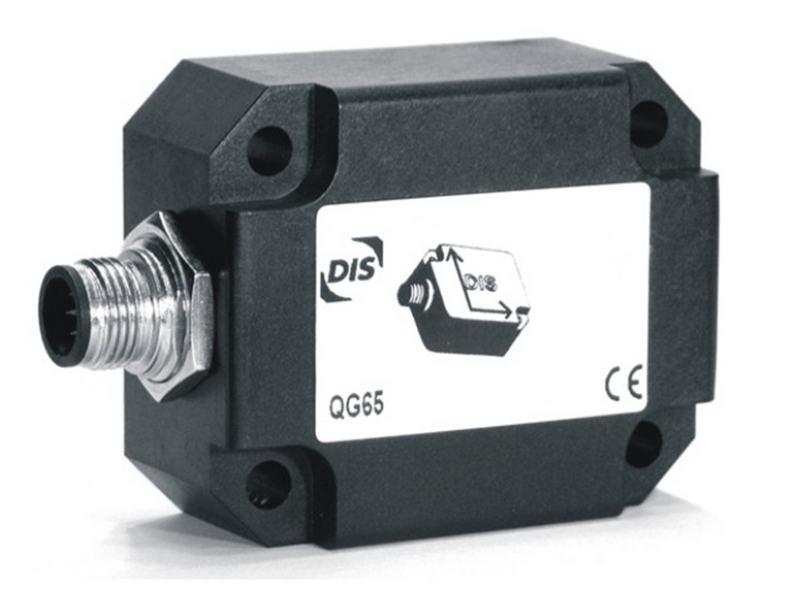

เซ็นเซอร์วัดแรงสั่นสะเทือน - Vibration sensor (QG65 series) แบบ 1, 2, 3 แกน (x, y, z) MEMS Technology มีความทนทานสูง
.jpeg)
Types of acceleration sensors
DIS acceleration sensors are available with the following general specifications:
| Measurement range: | ±0.26 to ±18 g (1 g = 9.81 m/s²) |
| Frequency: | 0 - 10/50/100/500/1,000/2,500 Hz |
| Energy supply: | 5 V dc or 10-30 V dc |
| Analogue output: | 0.5 - 4.5 V or 4 - 20 mA |
| Digital output: | CANopen (Safety) |
| Level of protection: | IP67, IP68 or IP69K |
| Precision: | depending on model and range: as high as ±0.003 g |
| Zeroing possibility: | depends on model |
| Functional safety: | SIL2/PLd (optional) |
| Housing: | (reinforced) plastic or stainless steel |
