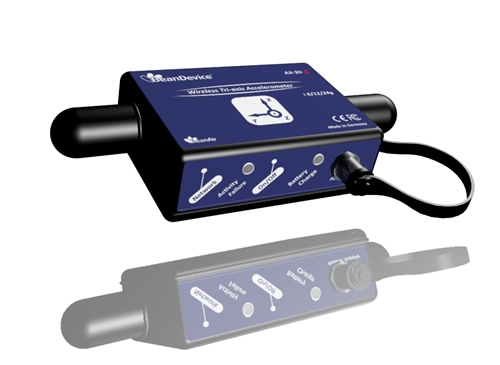

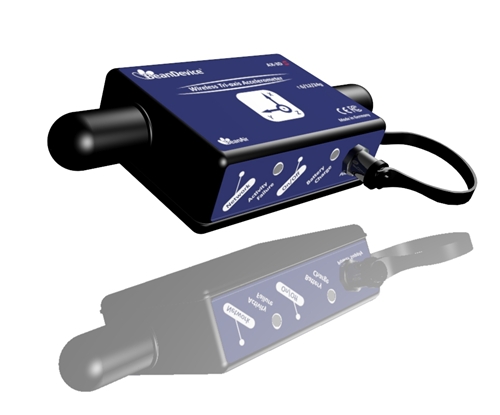

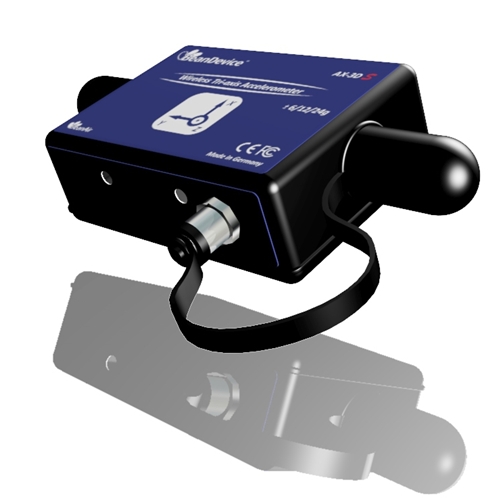

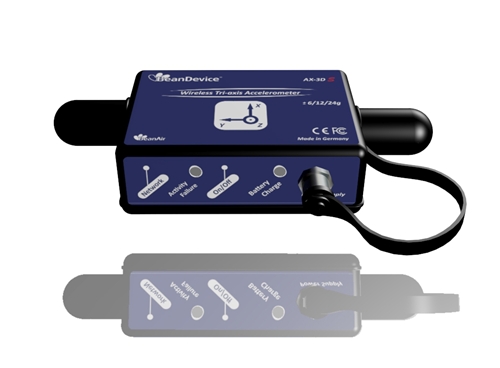

Wireless accelerometer dedicated to shock measurement with integrated data logger - AX-3DS
.jpg) |
.jpg) |
.jpg) |
.jpg) |
Main Features :
• Wireless accelerometer dedicated to shock measurement with integrated data logger
.
• Scalable measurement range : ±6g/±12g/±24g or ±2g/±4g/±8g
.
• Excellent radio link thanks to the antenna diversity developed by Beanair®
.
• SSD (Smart Shock Detection) Technology by Beanair
.
• Non contact actuation for faster installation
.
• Streaming mode: 1000 samples per second on each channel (maximum)
.
• Maximum radio range : 500 m (L.O.S)
.
• Ultra-Low Power Radio Technology IEEE 802.15.4
.
• Current consumption during deep sleeping mode : < 28 uA
.
• Embedded Data Logger : up to 1,000,000 data acquisition records
.
• OPC server allowing real time access from your IT system to the BeanScape® (available on BeanScape® Premium+)
.
• Entirely autonomous system with an integrated Lithium-Ion battery charger
.
• Watertight aluminium enclosure IP66 (dimensions Lxlxh : 80x55x21 mm—weight 145g rechargeable battery included) - suitable for Harsh Industrial Environment
.
• Free Scilab scripts for FFT & PPV filtering
.
• Time Synch function : The Device is synchronized with your PC/PLC clock with an accuracy less than 5 ms
