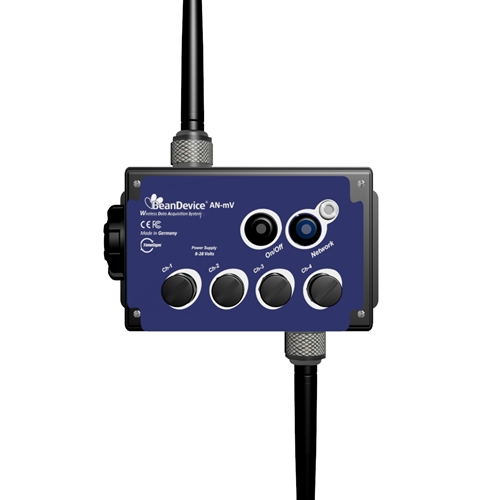

Wireless Analog Data Acquisition System with analog voltage inputs (±20mV) - AN-mV Xtender
.jpg)
• Self-powered wireless data logger with analog inputs ±20mV
.
• Unipolar or bipolar voltage measurement (software configurable): Bipolar: +/-20 mV , unipolar: 0- 40mV
.
• 100% Wireless Technology : the sensor power source is provided by the wireless data acquisition system (4.5V to 20V)
.
• Excellent radio link budget due to the antenna diversity & a high power RF Front-End designed by BeanAir
.
• Current consumption in sleeping mode : < 30 uA whatever the sensor technology
.
• Number of analog inputs : 4 inputs
.
• High measurement accuracy: < 0.2%
.
• Maximum Radio Range : 1000m (L.O.S)
.
• Embedded Datalogger : up to 1.000.0000 data acquisition records (with events dating)
.
• OPC server allowing real time access from your IT system to the BeanScape® (available on BeanScape® Premium+)
.
• Entirely autonomous system with an integrated primary cell
.
• Extended operating temperature range: – 40°C to +85°C
.
• « Plug and Play » installation : requires no knowledge of wireless technology
.
• IP65 Watertight aluminium enclosure suitable for harsh industrial environment
.
• Option: Calibration certificate linked to national and international standards (COFRAC)
.
• Time Synch function : The Device is synchronized with your PC/PLC clock with an accuracy less than 5 ms
