LINE/NOISE FILTER
>>
Power line filters
[1]
>>
6

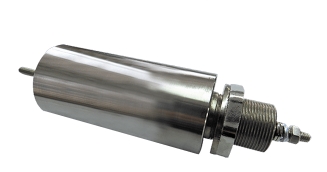

LINE FILTER รุ่น 8060 series Feedthrough filters 32-100(A)
Mounting
These filters are designed to be mounted derectly in the entry panel of a Faraday cage or in an shielded filter housing. Please contact us for options.
Torgue value max.
- Ø M 27 : 40 Nm
- Ø M 32 : 40 Nm
Connection
Treaded terminals with nut:
- Ø M 4 : 1.2 Nm
- Ø M 6 : 2.45 Nm
- Ø M 8 : 10 Nm
- Ø M 10 : 15 Nm
- Ø M 12 : 20 Nm
Product part numbers
| Part number | IR (A) | Screw | Insertion loss (dB) |
| 8060-32 | 32 | M6 | 100dB, 1M-40GHz |
| 8060-63 | 63 | M6 | |
| 8060-100 | 100 | M8 |
