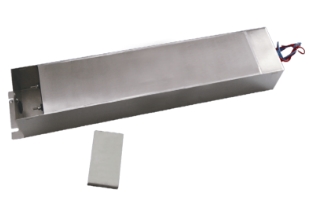

LINE FILTER รุ่น 8030 series Power line filters with line legs at load side 250VAC/500VDC, 6-250(A)
Technical data
| Rate voltage VR for two-line filters | 250VAC/500VDC | line-line or line-case |
| Rate voltage VR for four-line filters | 440VAC | line-line |
| 220VAC | line-case | |
| Rated Frequency fR | DC -60 Hz | |
| Rate Current IR | See characteristics | referred to +40? ambient temperature |
| Number of lines | 2/4 | |
| Test voltage | 1200Vdc/2s | Line- Line or line-case |
| Voltage drop/phase ΔV | <1% | of VR at 50Hz and IR |
| Leakage current I Leakage | See characteristics | at 380V/220V and 50Hz |
| Reactive Current I Reactive | See characteristics | at 380V/220V and 50Hz |
| Discharge Time to Below 34V | 30S | |
| Climatic category | 25/070/21 |
Product Range
| Part number | IR (A) | I Leakage (A)* | Terminal connection | Shielding effectivenes (dB) | |
| In | Out | ||||
| 8030-2-6 | 2×6 | 0.02 | Line legs | Line legs | 100dB, 14k-40GHz |
| 8030-2-16 | 2×16 | 0.02 | M6 Screw | Line legs | |
| 8030-2-32 | 2×32 | 0.02 | M6 Screw | Line legs | |
| 8030-2-63 | 2×63 | 0.15 | M6 Screw | Line legs | |
| 8030-2-100 | 2×100 | 0.15 | M12 Screw | Line legs | |
| 8030-2-200 | 2×200 | 0.15 | M12 Screw | Line legs | |
| 8030-2-250 | 2×250 | 0.15 | M12 Screw | Line legs | |
| 8030-4-16 | 4×16 | 0.005 | M6 Screw | Line legs | |
| 8030-4-32 | 4×32 | 0.005 | M6 Screw | Line legs | |
| 8030-4-63 | 4×63 | 0.005 | M6 Screw | Line legs | |
| 8030-4-100 | 4×100 | 0.05 | M12 Screw | Line legs | |
| 8030-4-200 | 4×200 | 0.05 | M12 Screw | Line legs | |
| 8030-4-250 | 4×250 | 0.05 | M12 Screw | Line legs | |
