LINE/NOISE FILTER
>>
Power line filters
[1]
>>
1

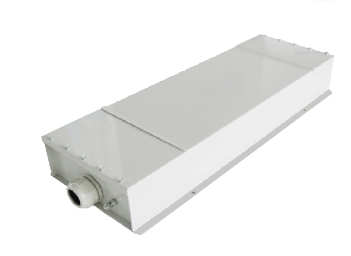

LINE FILTER รุ่น 8010 High performance filters 250VAC/500VDC, 16-150(A)
Technical Data :
| Rate voltage VR for two-line filters | 250VAC/500VDC | line-line or line-case |
| Rate voltage VR for four-line filters | 440VAC | line-line |
| 250VAC | line-case | |
| Rated Frequency fR | DC -60 Hz | |
| Rate Current IR | See characteristics | referred to +40? ambient temperature |
| Number of lines | 2 or 4 | |
| Insertion Loss, Per MIL-STD-220C | >100dB | 14kHz – 40GHz |
| DC Resistance | See characteristics | Each Line |
| Power Dissipation | See characteristics | At Rated Current |
| Test Voltage | 1200Vdc/2s | Line- Line or line-case |
| Voltage Drop /Phase ΔV | <1% | of VR at 50Hz and IR |
| Leakage Current ILeakage | See characteristics | at 380V/220V and 50Hz |
| Reactive Current IReactive | See characteristics | at 380V/220V and 50Hz |
| Discharge Time to Below 34V | 30s | |
| Climatic category | 25/070/21 |
Product Range
| Type | IR (A) | I Leakage (A)* | I Reactive (A) | DC Resistance (Ω) | Power dissipation (w) | Connection |
| 8010-2-16 | 16 | 3.5 | 3.5 | ?70 | ?40 | M6 Screw |
| 8010-2-32 | 32 | 5 | 5 | ?20 | ?40 | M6 Screw |
| 8010-2-63 | 63 | 5 | 5 | ?15 | ?90 | M6 Screw |
| 8010-2-100 | 100 | 9 | 9 | ?5 | ?120 | M12 Screw |
| 8010-2-150 | 150 | 9 | 9 | ?3 | ?140 | M12 Screw |
| 8010-4-16 | 16 | 0.7 | 3.5 | ?70 | ?70 | M6 Screw |
| 8010-4-32 | 32 | 0.9 | 5 | ?20 | ?80 | M6 Screw |
| 8010-4-63 | 63 | 0.9 | 5 | ?15 | ?170 | M6 Screw |
| 8010-4-100 | 100 | 1.7 | 9 | ?5 | ?220 | M12 Screw |
| 8010-4-150 | 150 | 1.7 | 9 | ?3 | ?270 | M12 Screw |
